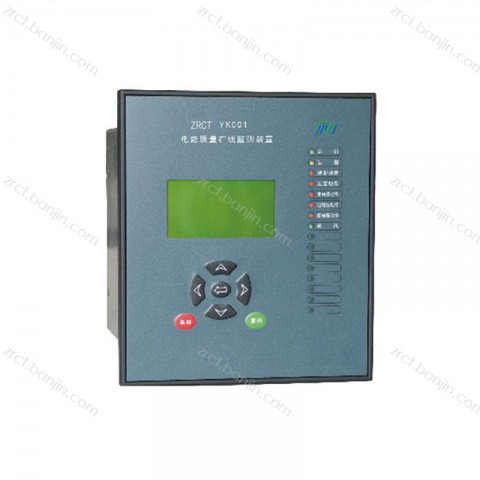

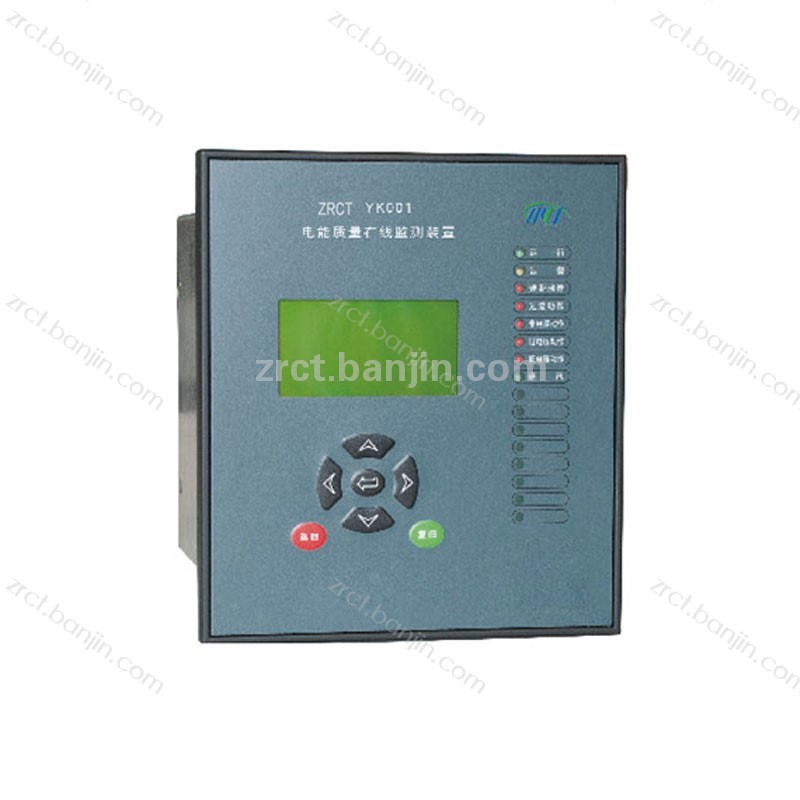

ZRCT-YK001 双路电能质量检测​

ZRCT-YK001 双路电能质量检测
ZRCT-YK001 Dual-Channel Power Quality Detection

功能：测量分析公用电网供到用户端的交流电能质量，其测量分析：系统频率、电网谐波、三相电压不平衡度、电压波动与闪变、电压偏差、电压基波有效值和真有效值、电流基波有效值和真有效值、基波有功功率、有功功率、基波视在功率、2-16次谐波等全部电能质量五大国标规定的参数。
应用小波变换测量分析非平稳时变信号的谐波；测量分析各种用电设备在不用运行状态下对公用电网电能质量的影响；负荷波动监视：记录和存储电压、电流、频率等电力参数的变化；电力设备调整及运行过程动态监视，帮助用户解决电力设备调整剂投运过程中出现的问题；测试分析电力系统中断路器动作，变压器过热、电机烧毁、自动装置误动作等故障原因；测试分析电力系统中无功补偿及滤波装置动态参数并对其功能和技术指标作出定量评价。
Functions: Measurement and analysis of the ac power quality from the public power grid to the client, it measures and analyzes: System frequency, network harmonics, three-phase voltage unbalance degree, voltage fluctuation and flicker, voltage deviation, voltage fundamental RMS and true RMS, current fundamental RMS and true RMS, fundamental active power, active power, fundamental apparent power, 2-16 harmonics and other parameters stipulated in the five national standards of power quality.
Wavelet transform is used to measure and analyze the harmonics of non-stationary time-varying signals. Measuring and analyzing the influence of various electrical equipment on the power quality of the public power network under different operating conditions; Load fluctuation monitoring: Record and store the changes of power parameters such as voltage, current and frequency. Dynamic monitoring of power equipment adjustment and operation process helps users to solve the problems arising in the commissioning process of power equipment regulators. Test and analyze the fault causes of power system circuit breaker action, transformer overheating, motor burnout, automatic device misoperation, etc. The dynamic parameters of reactive power compensation and filter devices in power system are tested and analyzed, and their functions and technical indexes are quantitatively evaluated.

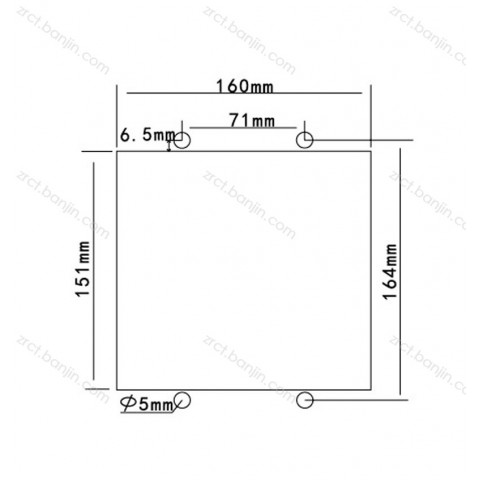

外形和开孔尺寸Shape and hole size
外形尺寸:162mm(w)x184mm(h)x150mm(d)
开孔尺寸:160mm(w)x151mm(h)
Dimension: 162mm (w) x184mm (h) x150mm (d)
Hole size: 160mm (w) x 151mm (h)
