ZRCT数显电力仪表

ZRCT数显电力仪表
Electric Power Instrument Series Products

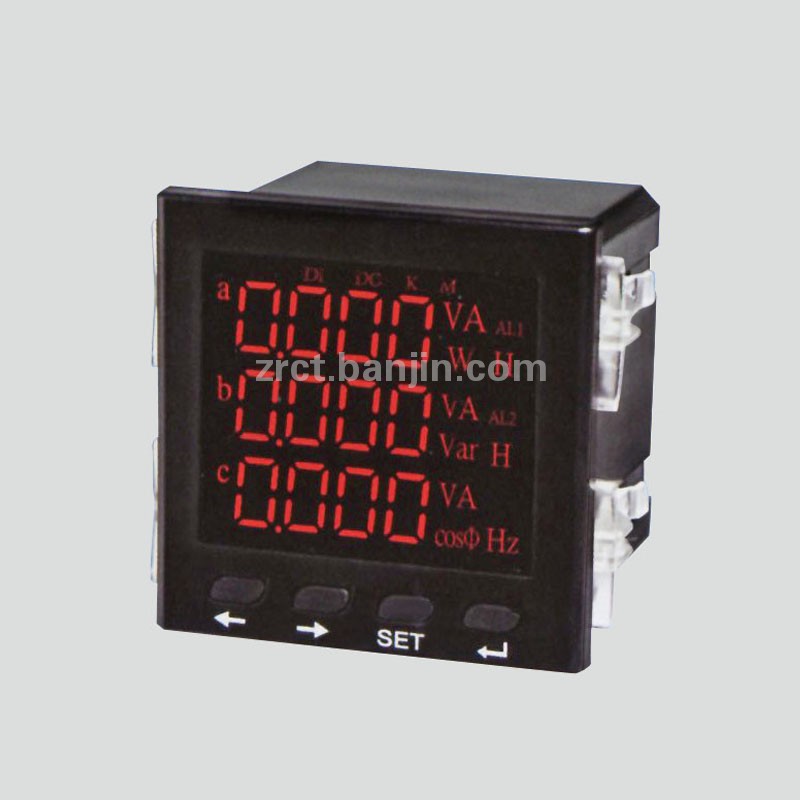

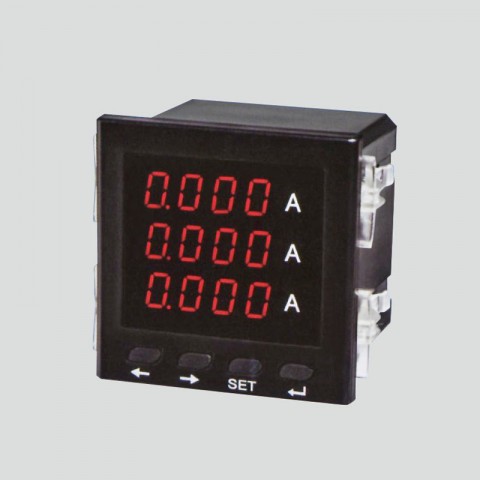

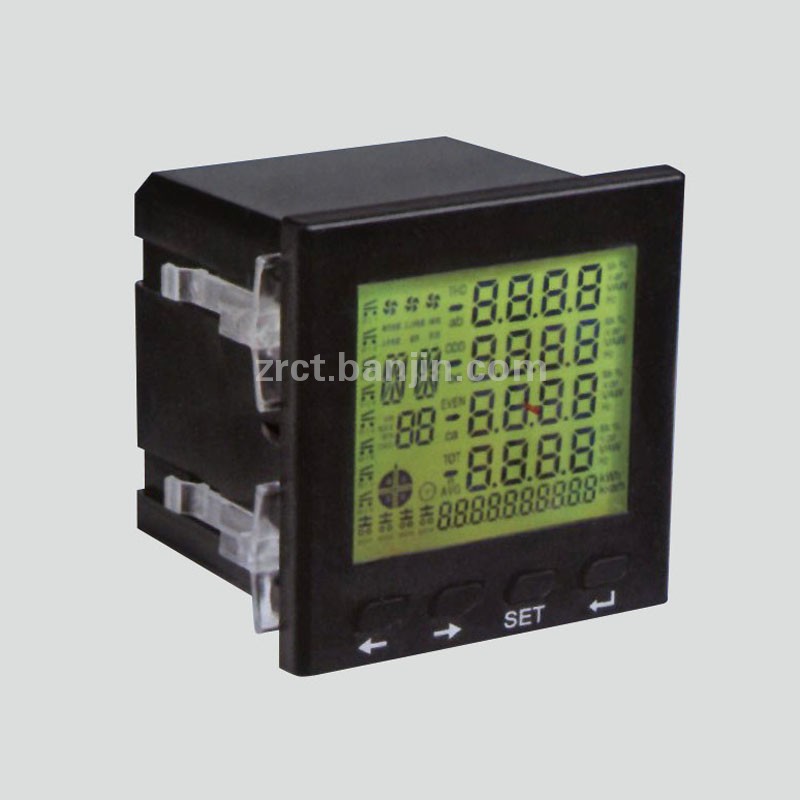

ZRCT Digital Display Power Instrument
产品简介Product Profile
智能数显仪表适用于电力电网，自动化控制系统中队电压、电流、有功功率、无功功率、视在功率、功率因素、频率以及四项限电能等电参量的测量，由数码管(LED)或液晶(LCD)直接显示。具有显示直观、精度高、性能稳定、隔离性强、抗振动等特点。可选配多种扩展功能，包括RS-485通讯、开关量输入、开关量输出和模拟量变送输出等,丰富的外型尺寸可方便代替指针式仪表。
本产品结构简单、美观大方、性能稳定、安装方便,采用插拔式端子。
Intelligent digital display instrument is suitable for power grid, automatic control system, voltage, current, active power, reactive power, apparent power, power factor, frequency and four limit electric energy and other electrical parameters measurement, digital tube (LED) or liquid crystal (LCD) display directly. It has the characteristics of visual display, high precision, stable performance, strong isolation and anti-vibration. It can be equipped with a variety of expansion functions, including RS-485 communication, switch quantity input, switch quantity output and analog quantity transformer send output, etc.
This product is simple in structure, elegant in appearance, stable in performance and easy to install.

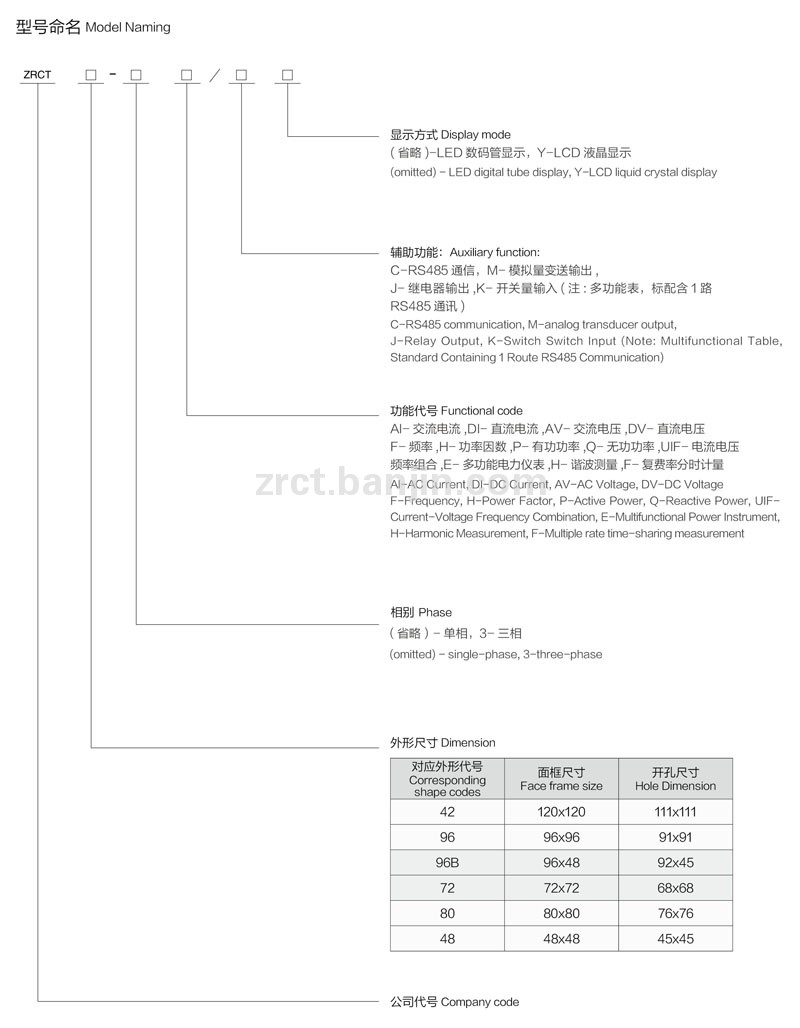

订货示例
订货时，应写明所需的产品型号，信号输入及功能模块等相关内容
Ordering example
When ordering, the product type, signal input and function module should be specified.

例1
型号:ZRCT96-3E/2J2K;
外形尺寸:96×96;
电源:AC 220V/50Hz;
信号输入:三相四线,AC 3x220/380V，AC 100A/5A
拓展功能:2路继电器输出,2路开关量输入
其他:其他出厂预设置(未作说明则按照默认设置出厂)
Example 1
Model: ZRCT96-3E/2J2K;
Dimension: 96x96;
Power supply: AC 220V/50Hz;
Signal input: three-phase four-wire, AC 3x220/380V, AC 100A/5A
Extended function: 2-way relay output, 2-way switch input
Others: Other factory preset settings (default settings if not specified)


例2
型号:ZRCT72-3AI/3J;
外形尺寸:72×72;
电源:AC 220V/50Hz;
信号输入:AC 1000A/5A
拓展功能:3路继电器输出
其他:其他出厂预设置(未作说明则按照默认设置出厂)
Example 2
Model: ZRCT72-3AI/3J;
Dimension: 72x72;
Power supply: AC 220V/50Hz;
Signal input: AC 1000A/5A
Extended function: 3-way relay output
Others: Other factory preset settings (default settings if not specified)
