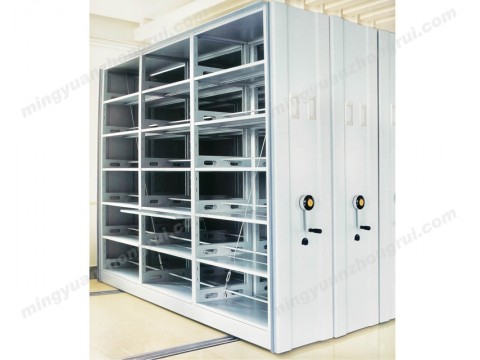

密集柜说明:
1、组型、列宽、层数、列数可按用户需要选定及订做。
2、左右边架一般为双面移动架,装门面组,也可为单面移动架,外侧装壁板。
3、轨道组有两种形式:地面式、埋入式。
4、传动机构采用精密滚子链和轴承,传动灵活平稳,摇力轻。摇杆可以自动离合,手柄为折叠式,可避免通行障碍。还可另选,轮盘式摇把。
5、边架装有锁具,用于整组架闭锁。
6、底架组为分段组合式的,加工精度高,具有对接互换性,节型范围宽,便于运输安装。

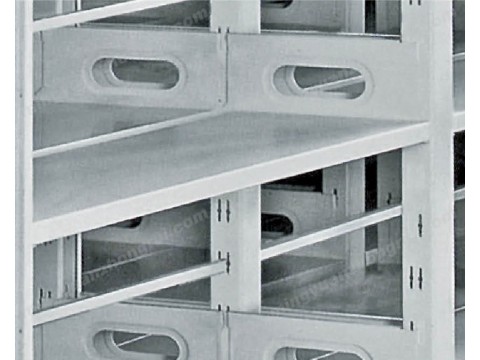

7、采用架板和有扣钩的挂板和档杆,组装后平稳牢固。
8、宽度为650mm以上的密集柜,采用三根立柱,保持了架体的钢度。
9、每层架板公称载荷,单面45kg,双面90kg。如需增大时,可专门设计,需在合同中注明承载要求。沉稳庄重,尊贵典雅,气魄宏伟,储存量大、由质感到神韵、都能满足您的需要。
Dense ark:
1, group type, column width, layer number, the number of columns can be made according to user needs to select and order.
2, left and right side frame for double sided mobile rack commonly, keep up appearances, can also be used for single mobile frame, the lateral wall panels.
3, track group has two forms: the ground type, embedded.
4, drive gear adopt precision roller chain and bearing, flexible transmission smooth, light wave force. Joystick can be automatic clutch handle for folding, and can avoid traffic barrier. Still can work,
Wheel disc crank.
5, side with locks, used for blocking the whole frame.
6, chassis group for piecewise combination, the processing precision is high, the docking compatibility, wide range section type, easy to transport installation.
7, use plane board, and has a button hook hangs Taiwan and gear lever, smooth after assembly firmly.
8, width is 650 mm above the dense ark, with three columns, keep the body stiffness.
9, each layer frame plate nominal load, 45 kg, single-sided double-sided 90 kg. If you want to increase, can be designed to indicate the load requirements in the contract. Composed solemn, noble and elegant, magnificent and large storage capacity, by qualitative feel charm, can satisfy your needs.
